Modelling of 25 storey building with the specified properties using ETABS

Challenge 6 – ETABS modelling of a 25 storey building

Model a 25 storey building on ETABS with structural properties as specified below. Ground floor or plinth floor level can be taken at a height of 1.5 metres from the base. Each of the successive 25 storeys has a storey height of 3 metres.

Structural Element Sizes

• Beams : 300 × 400 mm
• Columns : 800 × 800 mm
• Slab : 150 mm thick

Material Properties

• Grade of Concrete : M30
• Grade of Steel Reinforcement Bars : Fe 415

Loading

• Dead Load on beams from infill wall : 10 kN/m (Let us assume the same for roof floor in view of parapet)
• Live load on floor : 3 kN/m2 (Let us assume the same for roof floor)

a) Buildings are assumed to be pinned at the base

b) All columns in all storey are of the same size

c) All beams in all storeys are of the same size

d) Building is located on Soil type-II and in Zone-III. Assume other factors if required.



Carry out the following exercises:

• Check if the translational fundamental natural period of vibration in both the x and y direction is approximately: $T_{x1}$= 4.4 second $T_{y1}$= 4.2 second

This check will help confirm if modelling is done correctly. Some deviations from the above values is possible (± 2%). But any major deviation will suggest an error in modelling.

• Check if the following provision in Table 5 of IS 1893 (part 1) – 2016, on torsional irregularity satisfied:

The natural period corresponding to the torsional mode of oscillation must be less than the two fundamental translational modes of oscillation along each principal plan directions.

• Check if the two provisions of clause 7 in Table 6 (shown below) of IS 1893 (part 1) – 2016, regarding vertical irregularity is satisfied



• Check if provision on inter-storey drift limitations in clause 7.11.1.1 satisfied. Please note that this check is for Serviceability Limit State and hence is for situation when stucture is subjected to unfactored seismic base shear





STEP 1  :  TO OPEN THE ETABS



Doble click on ETABS 2018 icon

Go file in manubar

Click on new model

Go to model initialization window

Select use built in settings with

Then select display units as metric SI

Steel section data base as Indian

Steel design code as IS 800 : 2007

Concrete design code as IS 456 : 2000

Finaly click on ok

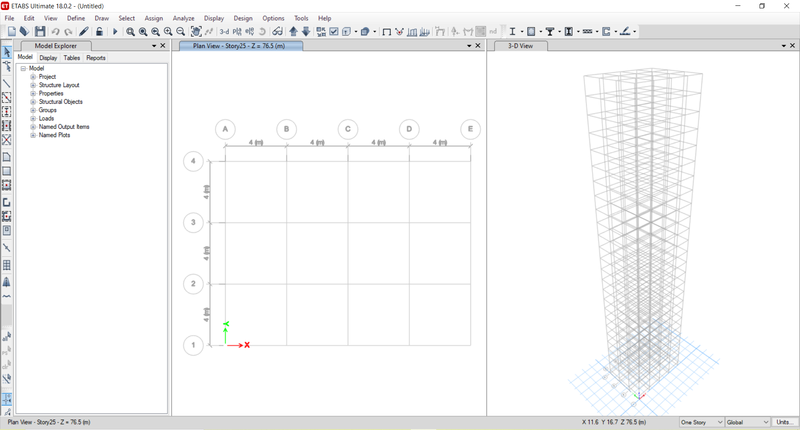

STEP 2  :  EDIT THE GRID DATA AND STORY DATA AS PER YOUR PLAN



Go to new model quick template

Go to grid dimensions (plan)

Select the uniform grid spacing

Give the no of grid lines in X direction - 5

No of grid lines in Y direction - 4

Spacing of grid in X direction - 4m

Spacing of grid in Y direction  - 4m



Go to storey dimensions

Then select / click on custom storey data

Go to edit storey data

Edit the storey as your required

Change the storey name as your required

Change the height of storey also as your required

Change the similar to as plinth and storey 1 is none and remain floors as similar to storey 1

To add the remain floors

Mouse right click

Select add storey

Click on keep existing storey height

Give the storey height as 3m or based on your required

no of added storey as based on your plan

click on ok

then change the storey name as your required

Click on ok

Finally click on ok







STEP 3  :  TO DEFINE THE MATERIAL PROPERTIES

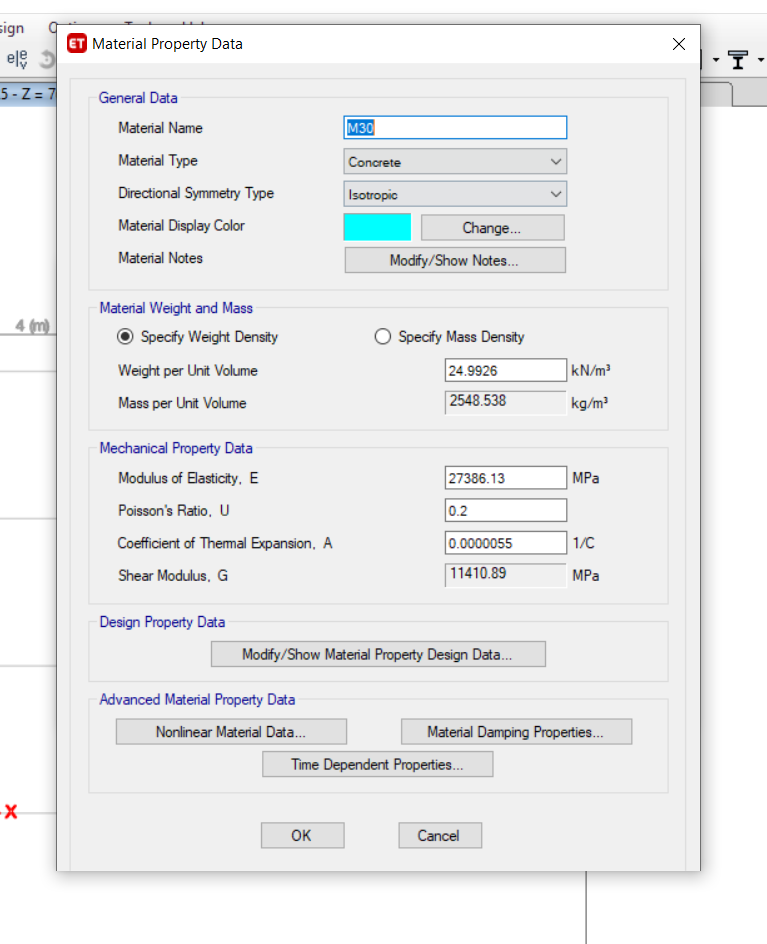

CONCRETE MATERIAL AS M 30

Go to define in manubar

Then select material properties

Then open define material window

Go to add new material

Then select region as Indian

Material type as Concrete

Standard as India

Grade as M 30 or as your required

click on ok

Check the data

Click on ok



REBAR MATERIAL AS HYSD 415

Go to define in manubar

Then select material properties

Then open define material window

Go to add new material

Then select region as Indian

Material type as Rebar

Standard as India

Grade as HYSD 415 or as your required

click on ok

Check the data

Click on ok





STEP 4  :  TO DEFINE THE SECTION PROPERTIES AS FRAME SECTIONS



COLUMN SIZE 800 X 800



Go to define in manubar

Then go to section properties

Then select the frame sections

Then open the frame section window

Go to add new properties

Then select the Concrete rectangular shape

Then give the property name as column 800 X 800

Material as M 30

Depth as 800 mm

Width as 800 mm

Then go to properties modify  / show modifiers

Then change the moment of inertia about 2 axis - 0.7

moment of inertia about 3 axis - 0.7

NOTE : MOMENT OF INERTIA ABOUT THE AXIS IS 70% AS PER IS 1893 : 2016 (PART 1) CLAUSE NO 6.4.3.1

Then click on ok

Then go to Reinforcement

Then click on modify / show rebar

Design type as P - M2 - M3 Design (column)

Then go to rebar material

To change longitudinal bar as HYSD 415

Confinement bar as HYSD 415

Then go to Confinement bar size and area as 8mm

Finally click on ok

Click on ok



BEAM SIZE 300 X 400



Go to define in manubar

Then go to section properties

Then select the frame sections

Then open the frame section window

Go to add new properties

Then select the Concrete rectangular shape

Then give the property name as beam 300 X 400

Material as M 30

Depth as 400 mm

Width as 300 mm

Then go to properties modify  / show modifiers

Then change the moment of inertia about 2 axis - 0.35

moment of inertia about 3 axis - 0.35

NOTE : MOMENT OF INERTIA ABOUT THE AXIS IS 35% AS PER IS 1893 : 2016 (PART 1) CLAUSE NO 6.4.3.1

Then click on ok

Then go to Reinforcement

Then click on modify / show rebar

Design type as M3 Design (beam)

Then go to rebar material

To change longitudinal bar as HYSD 415

Confinement bar as HYSD 415

Finally click on ok

Click on ok





STEP 5  :  TO ASSIGN THE SECTION PROPERTIES AS FRAME SECTIONS



TO ASSIGN THE COLUMNS

Go to draw in manubar

Then go to draw beam / column / brace objects

Then select quick draw column

Then go properties of objects

Select the property as column 800 X 800

Then go to storeys options

Then select the all storey

Then assign or place the column on grid lines as your required

Then click on Esc





TO ASSIGN THE BEAMS



Go to draw in manubar

Then go to draw beam / column / brace objects

Then select quick draw beam / column

Then go properties of objects

Select the property as beam 300 X 400

Then go to storeys options

Then select the all storey

Then assign or place the beams on grid lines as your required

Then click on Esc







STEP 6  :  TO DEFINE THE SECTION PROPERTIES AS A SLAB SECTIONS



SLAB THICKNESS 150mm



Go to define in manubar

Then go to section properties

Then select the slab section

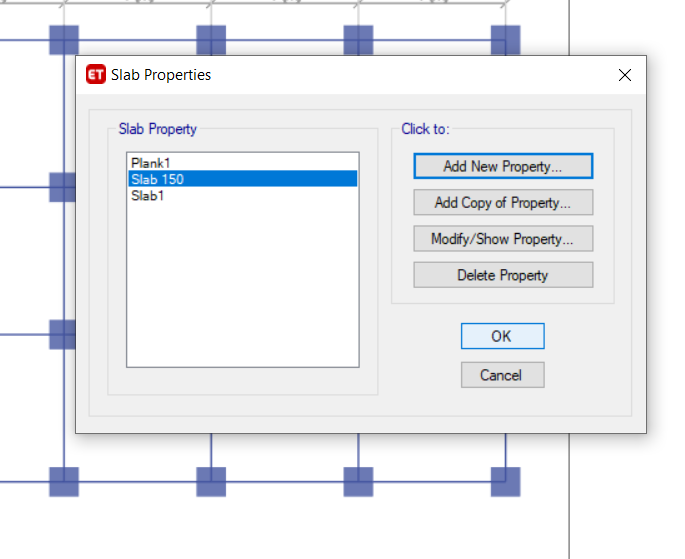

Then go to slab properties window

Click on add new properties

Then open slab properties data window

Then give properties name as slab 150

Slab material as M 30

Modeling type as membrane

Thickness as 150mm

Click on ok

Finally click on ok









STEP 7  :  TO ASSIGN THE SECTION PROPERTIES AS SLAB SECTIONS



Go to draw in manubar

Then go to draw floor / Wall objects

Then select quick draw floor / Wall

Go to properties of objects window

Select properties as slab 150

Then go storey options in down

Selecstorey as similar storey

Then assign or place the slab as your required plan





STEP 8  :  TO ASSIGN SUPPORTS CONDITIONS



Go to view in manubar

Select the set plan view

Go to select plan view window

select base plan

Click on ok



Select the all column base points

Then go to assign in manubar

Go to joint

Select restraint

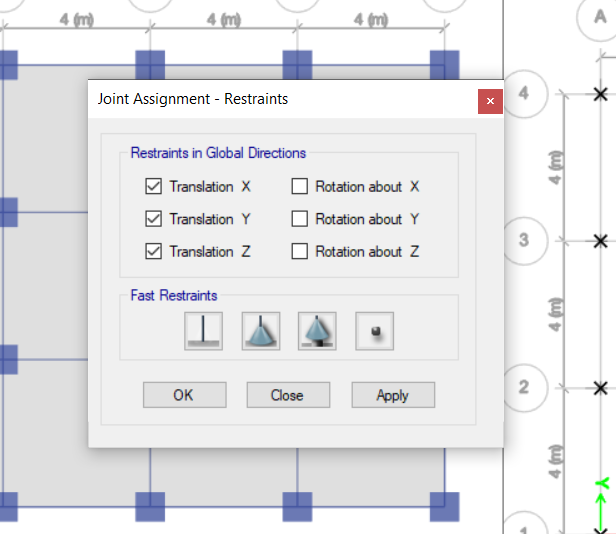

Go to joint assignments restraint window

select required pined support

click on apply

click on ok





STEP 9  :  TO CHECK THE RENDER VIEW

Select the 3d view window

Go to view in manubar

Select show rendered view

Check the 3d view



STEP 10  :  TO DEFINE LOAD PATTERNS



Go to define in manubar

Go to select load patterns

In default dead load and live load

Then add required Wall load and seismic load

WALL LOAD

Then give load as wall load

Type as super dead

Click on add new load



SEISMIC LOAD

Then give load as EQ X

Type as seismic

Auto lateral load as IS 1893 : 2016

Click on add new load



Then give load as EQ  +X

Type as seismic

Auto lateral load as IS 1893 : 2016

Click on add new load



Then give load as EQ  -X

Type as seismic

Auto lateral load as IS 1893 : 2016

Click on add new load



Then give load as EQ Y

Type as seismic

Auto lateral load as IS 1893 : 2016

Click on add new load



Then give load as EQ +Y

Type as seismic

Auto lateral load as IS 1893 : 2016

Click on add new load



Then give load as EQ -Y

Type as seismic

Auto lateral load as IS 1893 : 2016

Click on add new load



Then select EQ X load

Then click on modify lateral load

Then go to IS 1893 : 2016 seismic Loading window

Then select X dir only

Then deselect remain options

Then go to seismic zone factor Z

Select percode as 0.16 (zone III)

Site type as II

Important factor as 1.5

Response reduction as 5

Then go to time period

select user define T as 0.5 sec

Click on ok





Then select EQ +X load

Then click on modify lateral load

Then go to IS 1893 : 2016 seismic Loading window

Then select X dir + eecertricty only

Then deselect remain options

Then go to seismic zone factor Z

Select percode as 0.16 (zone III)

Site type as II

Important factor as 1.5

Response reduction as 5

Then go to time period

select user define T as 0.5 sec

Click on ok



Then select EQ -X load

Then click on modify lateral load

Then go to IS 1893 : 2016 seismic Loading window

Then select X dir - eecertricty only

Then deselect remain options

Then go to seismic zone factor Z

Select percode as 0.16 (zone III)

Site type as II

Important factor as 1.5

Response reduction as 5

Then go to time period

select user define T as 0.5 sec

Click on ok





Then select EQ Y load

Then click on modify lateral load

Then go to IS 1893 : 2016 seismic Loading window

Then select Y dir only

Then deselect remain options

Then go to seismic zone factor Z

Select percode as 0.16 (zone III)

Site type as II

Important factor as 1.5

Response reduction as 5

Then go to time period

select user define T as 0.5 sec

Click on ok



Then select EQ +Y load

Then click on modify lateral load

Then go to IS 1893 : 2016 seismic Loading window

Then select Y dir + eecertricty only

Then deselect remain options

Then go to seismic zone factor Z

Select percode as 0.16 (zone III)

Site type as II

Important factor as 1.5

Response reduction as 5

Then go to time period

select user define T as 0.5 sec

Click on ok



Then select EQ -Y load

Then click on modify lateral load

Then go to IS 1893 : 2016 seismic Loading window

Then select Y dir - eecertricty only

Then deselect remain options

Then go to seismic zone factor Z

Select percode as 0.16 (zone III)

Site type as II

Important factor as 1.5

Response reduction as 5

Then go to time period

select user define T as 0.5 sec

Click on ok









STEP  11  :  TO ASSIGN THE LOAD PATTERNS



TO ASSIGN THE DEAD LOAD AS SLEFWEIGHT



Go to select in manubar

Then go to select options

Then select the object type

Select the beam

Click on select

Click on close



Go to assign in manubar

Then go to frame load

Then click on distributed

Then go to frame load assignments distributed window

Then select load pattern name as dead

Go to uniform load

Then give load as 1.5 KN/m

Click on apply

Click on ok







TO ASSIGN THE WALL LOAD



Go to select in manubar

Then go to select options

Then select / click on objects type

Select the beam

Click on select

Click on close





Go to assign in manubar

Then go to frame load

Then click on distributed

Then go to frame load assignments distributed window

load patterns name as wall load

Go to uniform load

Then give load as 10 KN/m

Click on apply

Click on ok



TO ASSIGN THE DEAD LOAD ON SLAB / FLOOR



Go to select in manubar

Then go to select options

Then select / click on objects type

Select the floor

Click on select

Click on close



Floor load as 3.75 KN/m^2 ( dead load )



Go to assign in manubar

Then go to shall load

Select uniform

Then go shall load assignments uniform window

Then select load patterns as dead load

Then go to uniform load

Then load as 3.75 KN/m^2 ( dead load )

Click on apply

Click on ok



TO ASSIGN THE LIVE LOAD ON SLAB / FLOOR



Go to select in manubar

Then go to select options

Then select / click on objects type

Then select the floor

Click on select

Click on close



FLOOR LOAD AS 3 KN/m^2 ( Live load )



Go to assign in manubar

Then go to shall load

Select the uniform

Then go to shall load assignments uniform window

Then select load patterns as live

Then go to uniform load

Then give load as 3 KN/m^2 ( Live load )

Click on apply

Click on ok





STEP  12  :  TO DEFINE AND ASSIGN MASS SOURCES



Go to define in manubar

Then select mass source

Then go to mass source window

Then click on modify / show mass source

Go to mass source data window

Then give the mass source name mass source

Then go to mass source

Uncheck the elements selfmass and additional mass

Select the specified load patterns

Then go to mass multipliers for load patterns



Then select load patterns as dead load and multipler as 1

Click on add

Then select load patterns as wall load and multipler as 1

Click on add

Then select load patterns as live load and multipler as 0.25

Click on ok

Finally click on ok







STEP  13  :  TO DEFINE AND ASSIGN THE MODEL CASES



Go to define in manubar bar

Select modal cases

Go to model cases window

Click on modify / show case

Go to loads applied

Then click on add

Load Type as acceleration

Load name as UX

Then click on add

Load Type as acceleration

Load name as UZ

Then click on add

Load Type as acceleration

Load name as UY

Then go to other parameters

Then maximum number of modes as 25

Minimum number of modes as 1

Then click on ok

Finally click on ok





STEP  14  :  TO DEFINE AND ASSIGN THE LOAD COMBINATIONS



Go to define in manubar

Then select load combinations

Then go to load combinations window

Then click on add default design combinations

Go to add default design combinations window

Select the Concrete frame design

Click on ok

finally click on ok





STEP  15  :  TO ASSIGN THE DIAPHRAGMS AS FLOORS



Go to select in manubar

Then go to select options

Then select objects type

Then go to select by objects type window

Select floors

Click on select

Click on close





Then go to assign in manubar

Then go to shall

Then click on diaphragms

Then go to shall assignments diaphragm window

select D1

Click on apply

Click on ok





STEP  16  :  TO ANALYZE THE MODEL



TO CHECK MODEL



Go to analyze in manubar

Then click on check model

Then go to check model window

Select the select / deselect all

Click on ok

Then no warning's arise Then the model is ready



TO RUN ANALYSIS MODEL



Go to analyze in manubar

Then click on run analysis / press F5 function key

Our model as been analysised



STEP  17  :  TO CHECK THE SUPPORT RECTIONS



Go to display in manubar

Then go to force / stress diagrams

Then select support / spring rection

Then go to reaction window

Then select the required load

Then select the required display results for these components

Then click on apply

Click on ok



STEP  18  :  TO CHECK THE DEFLECTION



Go to display in manubar

Then go to deformed shape / F6 function key

Go to deformed shape window

Select required load / combo / mode options

Then click on apply

Then click on ok





STEP  19  :  TO CHECK THE TABLES



Go to display in manubar

Click on show table

Go to choose table for display window

Go to structure output

Click on + symbol

Then select the required information

Then check the data









STEP  20  :  TO CHECK THE STORY RESONSE PLOTS



Go to display in manubar

Click on storey response plots

Go to storey response plots  window

Go to display type

Select the required plot



RESULT  :

FROM THE TABLE THE TIME PERIODS , T X1 = 7.079 AND T Y1 = 6.825

THE 25 STORY BULIDING AS SUSFFULY ANALYZIED

THE TIME PERIOD SEPARATION OF LEAST 10% IS NOT ACHIEVED
