Creating various 3D Models like Furniture, Footing, Girder, Column drop with panel and Gable Wall in AutoCad

1. Create a 3D Furniture element as shown in the Figure. Assume dimensions which are missing.

AIM :

         TO DRAW THE 3D WIREFRAME MODEL AS SHOWN FIGURE BY USING AUTOCAD TOOL

INTRODUCTION :

THE 3D WIREFRAME MODEL GIVEN IS A FURNITURE EQUIPMENT IN THE HOUSE.
THE 3D WIREFRAME MODEL IS DRAWN IN DIFFERENT COORDINATE SYSTEM SUCH AS RECTANGULAR COORDINATES SYSTEM, SPHERICAL COORDINATES SYSTEM, RELATIVE COORDINATE SYSTEM AND CYLINDRICAL COORDINATE SYSTEM.

PROCEDURE :

OPEN AUTOCAD
CHANGE UNITS AS YOUR REQURED
TYPE UN IN COMMAND BOX AND PRESS ENTER
CHANGE UNITS TYPE TO DECIMAL AND PRECISION TO 0.00 AND INSRTION SCALE TO MILLIMETERS
NEXT TYPE D IN COMMAND BOX AND PRESS ENTER
CHANGE DIMSTYLE AS BASED ON UNITS

CHANGE THE WORKSPACE SETTING OF AUTOCAD FROM DRAFTING AND ANNOTATION TO 3D MODELING.

CREATING LAYERS
OPEN LAYER PROPERTIES AND CREATE NEW LAYERS BY CLICKING ON NEW LAYER OR RIGHT CLICK ON LAYER AND SELECT NEW LAYER TO CREATE NEW LAYER.
LAYERS ARE CREATED AS



Command: UN UNITS
Command: D DIMSTYLE
Command: Regenerating model.
_WSCURRENT
Enter new value for WSCURRENT <"Drafting & Annotation">: 3D Modeling
Command: Regenerating model.

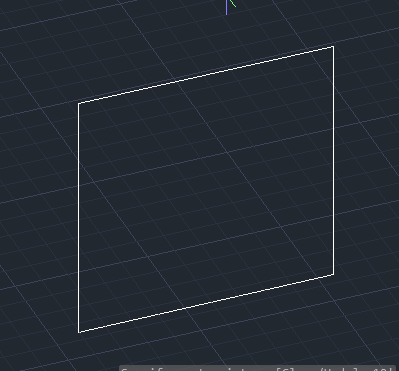

Command: L LINE
Specify first point:
Specify next point or [Undo]: 2'
Specify next point or [Undo]: 2'6"
Specify next point or [Close/Undo]: 2'
Specify next point or [Close/Undo]: c

Command: Regenerating model.
J JOIN
Select source object or multiple objects to join at once: Specify opposite corner: 4 found
Select objects to join:
4 objects converted to 1 3D polyline

Command: PRESSPULL
Select object or bounded area:
Specify extrusion height or [Multiple]:
Specify extrusion height or [Multiple]:2"
1 extrusion(s) created

Command: L LINE
Specify first point:
Specify next point or [Undo]: 2"
Specify next point or [Undo]:
Specify next point or [Close/Undo]:
Specify next point or [Close/Undo]: *Cancel*

Command: _presspull
Select object or bounded area:
Specify extrusion height or [Multiple]:
Specify extrusion height or [Multiple]:2'10"
1 extrusion(s) created
Select object or bounded area:

Command: L LINE
Specify first point:
Specify next point or [Undo]: 2"
Specify next point or [Undo]:
Specify next point or [Close/Undo]: *Cancel*

Command: PRESSPULL
Select object or bounded area:
Specify extrusion height or [Multiple]:
Specify extrusion height or [Multiple]:
1 extrusion(s) created
Select object or bounded area:



RESULT :

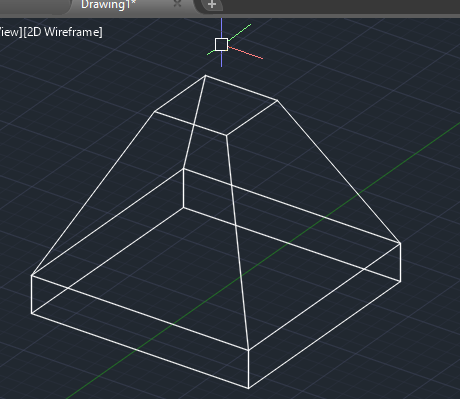

2. Create the 3d Model of an Isolated footing as shown in Figure.

AIM :

        TO DRAW THE 3D WIREFRAME MODEL OF AN ISOLATED FOOTING AS SHOWN FIGURE BY USING AUTOCAD TOOL

INTRODUCTION :

THE 3D MODEL GIVEN IS AN ISOLATED FOOTING.
AN ISOLATED FOOTING IS USED TO SUPPORT A SINGLE COLUMN.
ISOLATED FOOTINGS ARE INDEPENDENT FOOTINGS WHICH ARE PROVIDED FOR EACH COLUMN.
BECAUSE OF ITS SIMPLICITY AND ECONOMICAL NATURE, IT IS MOST COMMONLY USED REINFORCEMENT FOOTING.
THIS 3D MODEL IS OF TRAPEZOIDAL TAPERED ISOLATED FOOTING.

PROCEDURE :

OPEN AUTOCAD
CHANGE UNITS AS YOUR REQURED
TYPE UN IN COMMAND BOX AND PRESS ENTER
CHANGE UNITS TYPE TO DECIMAL AND PRECISION TO 0.00 AND INSRTION SCALE TO MILLIMETERS
NEXT TYPE D IN COMMAND BOX AND PRESS ENTER
CHANGE DIMSTYLE AS BASED ON UNITS

CHANGE THE WORKSPACE SETTING OF AUTOCAD FROM DRAFTING AND ANNOTATION TO 3D MODELING.

CREATING LAYERS
OPEN LAYER PROPERTIES AND CREATE NEW LAYERS BY CLICKING ON NEW LAYER OR RIGHT CLICK ON LAYER AND SELECT NEW LAYER TO CREATE NEW LAYER.
LAYERS ARE CREATED AS

Command: L LINE
Specify first point:
Specify next point or [Undo]: 3'
Specify next point or [Undo]: 3'
Specify next point or [Close/Undo]: 3'
Specify next point or [Close/Undo]: c

Command: J JOIN
Select source object or multiple objects to join at once: Specify opposite corner: 4 found
Select objects to join:
4 objects converted to 1 polyline

Command: PRESSPULL
Select object or bounded area:
Specify extrusion height or [Multiple]:
Specify extrusion height or [Multiple]:6
1 extrusion(s) created
Select object or bounded area:

Command: l LINE
Specify first point:
Specify next point or [Undo]: 1'
Specify next point or [Undo]: 1'
Specify next point or [Close/Undo]: 1'
Specify next point or [Close/Undo]: c
Command: Specify opposite corner or [Fence/WPolygon/CPolygon]:
Command: J JOIN 4 found
4 objects converted to 1 polyline

Command: M MOVE 1 found
Specify base point or [Displacement] :
Specify second point or : 2'

Command: LOFT
Current wire frame density: ISOLINES=4, Closed profiles creation mode = Solid
Select cross sections in lofting order or [POint/Join multiple edges/MOde]: 1 found
Select cross sections in lofting order or [POint/Join multiple edges/MOde]: 1 found, 2 total
Select cross sections in lofting order or [POint/Join multiple edges/MOde]:
2 cross sections selected
Enter an option [Guides/Path/Cross sections only/Settings] :

Command: m MOVE 1 found
Specify base point or [Displacement] :
Specify second point or :

Command: UNI UNION
Select objects: 1 found
Select objects: 1 found, 2 total
Select objects:

RESULT :

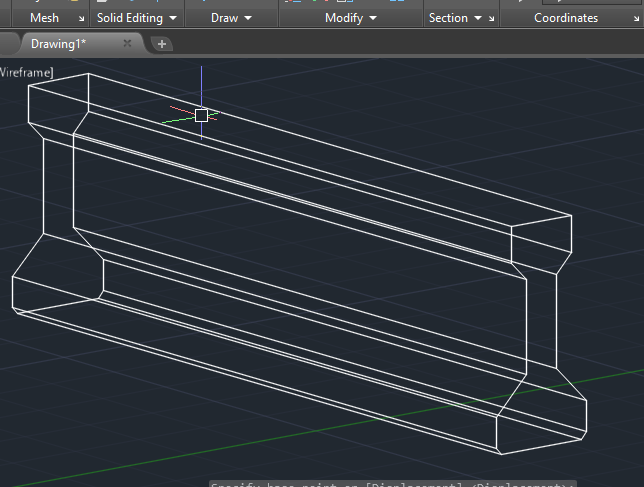

3. Create the 3D view of the AASTHO Type Girder.

AIM :

       TO DRAW THE 3D WIREFRAME MODEL OF AN AASTHO TYPE GIRDER AS SHOWN FIGURE BY USING AUTOCAD TOOL

INTRODUCTION :

THE 3DMODEL GIVEN IS AN AASHTO TYPE GIRDER I SECTION.
AASHTO GIRDERS ARE CLASSIFIED INTO 5 DIFFERENT TYPES DEPENDING ON THEIR DIMENSIONS OF FLANGE AND WEB.
FOLLOWING FIGURE SHOWS THE TYPES OF AASHTO-I BEAMS AT DIFFERENT DIMENSIONS.
AS PER THE DIMENSIONS OF THE GIVEN FIGURE THE AASHTO GIRDER TYPE IS II.

PROCEDURE :

OPEN AUTOCAD
CHANGE UNITS AS YOUR REQURED
TYPE UN IN COMMAND BOX AND PRESS ENTER
CHANGE UNITS TYPE TO DECIMAL AND PRECISION TO 0.00 AND INSRTION SCALE TO MILLIMETERS
NEXT TYPE D IN COMMAND BOX AND PRESS ENTER
CHANGE DIMSTYLE AS BASED ON UNITS

CHANGE THE WORKSPACE SETTING OF AUTOCAD FROM DRAFTING AND ANNOTATION TO 3D MODELING.

CREATING LAYERS
OPEN LAYER PROPERTIES AND CREATE NEW LAYERS BY CLICKING ON NEW LAYER OR RIGHT CLICK ON LAYER AND SELECT NEW LAYER TO CREATE NEW LAYER.
LAYERS ARE CREATED AS

Command: L LINE
Specify first point:
Specify next point or [Undo]: 3'
Specify next point or [Undo]: 3'
Specify next point or [Close/Undo]: 3'
Specify next point or [Close/Undo]: c

Command: J JOIN
Select source object or multiple objects to join at once: Specify opposite corner: 4 found
Select objects to join:
4 objects converted to 1 polyline

Command: PRESSPULL
Select object or bounded area:
Specify extrusion height or [Multiple]:
Specify extrusion height or [Multiple]:6
1 extrusion(s) created
Select object or bounded area:

Command: l LINE
Specify first point:
Specify next point or [Undo]: 1'
Specify next point or [Undo]: 1'
Specify next point or [Close/Undo]: 1'
Specify next point or [Close/Undo]: c
Command: Specify opposite corner or [Fence/WPolygon/CPolygon]:
Command: J JOIN 4 found
4 objects converted to 1 polyline

Command: M MOVE 1 found
Specify base point or [Displacement] :
Specify second point or : 2'

Command: LOFT
Current wire frame density: ISOLINES=4, Closed profiles creation mode = Solid
Select cross sections in lofting order or [POint/Join multiple edges/MOde]: 1 found
Select cross sections in lofting order or [POint/Join multiple edges/MOde]: 1 found, 2 total
Select cross sections in lofting order or [POint/Join multiple edges/MOde]:
2 cross sections selected
Enter an option [Guides/Path/Cross sections only/Settings] :

Command: m MOVE 1 found
Specify base point or [Displacement] :
Specify second point or :

Command: UNI UNION
Select objects: 1 found
Select objects: 1 found, 2 total
Select objects:



RESULT :





4. Create a 3d Model of a  drop column with panel as shown in section and isometric view.

AIM :

         TO DRAW THE 3D WIREFRAME MODEL OF A DROP COLUMN AS SHOWN FIGURE BY USING AUTOCAD TOOL

INTRODUCTION :

THE 3D MODEL GIVEN IS A DROP COLUMN USED FOR CONSTRUCTION OF FLAT SLABS.
A DROP COLUMN IS USED WHEN BEAM IS NOT REQUIRED IN THE DESIGN.
DROP IS A PART OF THE SLAB AROUND THE COLUMN, WHICH HAVE GREATER THICKNESS THAN THE REST OF THE SLAB.
THE DROP COLUMN NOT ONLY ELIMINATES THE NEED OF BEAM BUT ALSO GIVES A PLAIN CEILING AND GREAT APPETENCE, BETTER LIGHT DIFFUSION, MORE OPEN ROOMS.
FLAT SLAB IS DESING BY TWO METHODS
1. DIRECT DESING METHOD.
2. EQUIVALENT FRAME METHOD

PROCEDURE :

OPEN AUTOCAD
CHANGE UNITS AS YOUR REQURED
TYPE UN IN COMMAND BOX AND PRESS ENTER
CHANGE UNITS TYPE TO DECIMAL AND PRECISION TO 0.00 AND INSRTION SCALE TO MILLIMETERS
NEXT TYPE D IN COMMAND BOX AND PRESS ENTER
CHANGE DIMSTYLE AS BASED ON UNITS

CHANGE THE WORKSPACE SETTING OF AUTOCAD FROM DRAFTING AND ANNOTATION TO 3D MODELING.

CREATING LAYERS
OPEN LAYER PROPERTIES AND CREATE NEW LAYERS BY CLICKING ON NEW LAYER OR RIGHT CLICK ON LAYER AND SELECT NEW LAYER TO CREATE NEW LAYER.
LAYERS ARE CREATED AS

CREATING COLUMN TOP VIEW
DRAW A RECTANGLE OF DIMENSIONS 4'6" X 4'6"
TURN ON GEOMETRIC CENTER SNAP IN THE OBJECT SNAP
DRAW A CIRCLE OF DIAMETER 3'6" AT GEOMETRIC CENTER OF THE SQUARE
DRAW A CIRCLE OF DIAMETER 1'6" AT GEOMETRIC CENTER OF THE SQUARE

Command: L LINE
Specify first point:
Specify next point or [Undo]: 3'
Specify next point or [Undo]: 3'
Specify next point or [Close/Undo]: 3'
Specify next point or [Close/Undo]: c

Command: J JOIN
Select source object or multiple objects to join at once: Specify opposite corner: 4 found
Select objects to join:
4 objects converted to 1 polyline

Command: PRESSPULL
Select object or bounded area:
Specify extrusion height or [Multiple]:
Specify extrusion height or [Multiple]:6
1 extrusion(s) created
Select object or bounded area:

Command: l LINE
Specify first point:
Specify next point or [Undo]: 1'
Specify next point or [Undo]: 1'
Specify next point or [Close/Undo]: 1'
Specify next point or [Close/Undo]: c
Command: Specify opposite corner or [Fence/WPolygon/CPolygon]:
Command: J JOIN 4 found
4 objects converted to 1 polyline

Command: M MOVE 1 found
Specify base point or [Displacement] :
Specify second point or : 2'

Command: LOFT
Current wire frame density: ISOLINES=4, Closed profiles creation mode = Solid
Select cross sections in lofting order or [POint/Join multiple edges/MOde]: 1 found
Select cross sections in lofting order or [POint/Join multiple edges/MOde]: 1 found, 2 total
Select cross sections in lofting order or [POint/Join multiple edges/MOde]:
2 cross sections selected
Enter an option [Guides/Path/Cross sections only/Settings] :

Command: m MOVE 1 found
Specify base point or [Displacement] :
Specify second point or :

Command: UNI UNION
Select objects: 1 found
Select objects: 1 found, 2 total
Select objects:

RESULT :





5.  Create the 3d model of a wall as shown in Figure. Consider wall thickness as 9”.



AIM : TO DRAW THE 3D WIREFRAME MODEL OF A WALL AS SHOWN FIGURE BY USING AUTOCAD TOOL

INTRODUCTION :
THE 3D MODEL GIVEN IS A WALL DOOR OPENING.
THE 3D VIEW OF A WALL IS SHOWN ABOVE WITH A DOOR OPENING.
THE THICKNESS OF THE WALL IS 9" WHICH IS STANDARD THICHNESS OF OUTER WALLS OF A HOUSE.
THE DIMENSION OF THE DOOR OPENING IS 3' X 7'.
THE TOP OF THE WALL IS GABLE SHAPE AND IS ALSO KNOWN AS GABLE WALL.

PROCEDURE :
OPEN AUTOCAD
CHANGE UNITS AS YOUR REQURED
TYPE UN IN COMMAND BOX AND PRESS ENTER
CHANGE UNITS TYPE TO DECIMAL AND PRECISION TO 0.00 AND INSRTION SCALE TO MILLIMETERS
NEXT TYPE D IN COMMAND BOX AND PRESS ENTER
CHANGE DIMSTYLE AS BASED ON UNITS

CHANGE THE WORKSPACE SETTING OF AUTOCAD FROM DRAFTING AND ANNOTATION TO 3D MODELING.

CREATING LAYERS
OPEN LAYER PROPERTIES AND CREATE NEW LAYERS BY CLICKING ON NEW LAYER OR RIGHT CLICK ON LAYER AND SELECT NEW LAYER TO CREATE NEW LAYER.
LAYERS ARE CREATED AS

PROCEDURE  :

•  Turn on any time ORTHOMODE
•  Press F5 to change the direction of the isomtric view to isoplane right or change direction in status bar to isoplane right

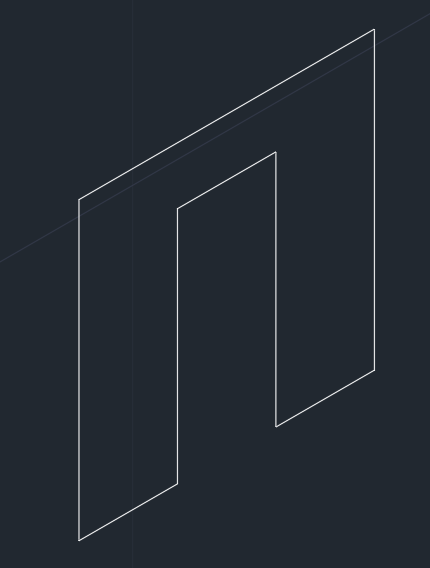

LINE  Command: L Enter
Specify first point:  mouse click
Specify next point or [Undo]: 3  Enter
Specify next point or [eXit/Undo]: <Isoplane Top> 3  Enter
Specify next point or [Close/eXit/Undo]: <Isoplane Right> 3  Enter
Specify next point or [Close/eXit/Undo]: 1  Enter
Specify next point or [Close/eXit/Undo]: 2.42  Enter
Specify next point or [Close/eXit/Undo]: 1  Enter
Specify next point or [Close/eXit/Undo]: 2.42  Enter
Specify next point or [Close/eXit/Undo]: C  Enter

LINE  Command: L  Enter
Specify first point: mouse click
Specify next point or [Undo]: 0.25   Enter
Specify next point or [eXit/Undo]: mouse click
Specify next point or [Close/eXit/Undo]:  Esc / Enter
LINE  Command: L  Enter
Specify first point: mouse click
Specify next point or [Undo]: mouse click
Specify next point or [eXit/Undo]:  Esc / Enter
Command: Specify opposite corner or [Fence/WPolygon/CPolygon]:
Command: _.erase 2 found

LINE  Command: L  Enter
Specify first point:
Specify next point or [Undo]: <Isoplane Left> 0.3
Specify next point or [eXit/Undo]: 3
Specify next point or [Close/eXit/Undo]:
Specify next point or [Close/eXit/Undo]: Esc / Enter
COPY  Command: CO  Enter 2 found
Current settings: Copy mode = Multiple
Specify base point or [Displacement/mOde] <Displacement>:
Specify second point or [Array] <use first point as displacement>:
Specify second point or [Array/Exit/Undo] <Exit>: Esc / Enter
LINE  Command: L  Enter
Specify first point:
Specify next point or [Undo]:
Specify next point or [eXit/Undo]:
LINE Command: L Enter
Specify first point:
Specify next point or [Undo]:
Specify next point or [eXit/Undo]: Esc / Enter

LINE  Command: L  Enter
Specify first point: mouse click
Specify next point or [Undo]: 0.3   Enter
Specify next point or [eXit/Undo]:  mouse click
Specify next point or [Close/eXit/Undo]: Esc / Enter







RESULT :
